Aolisheng

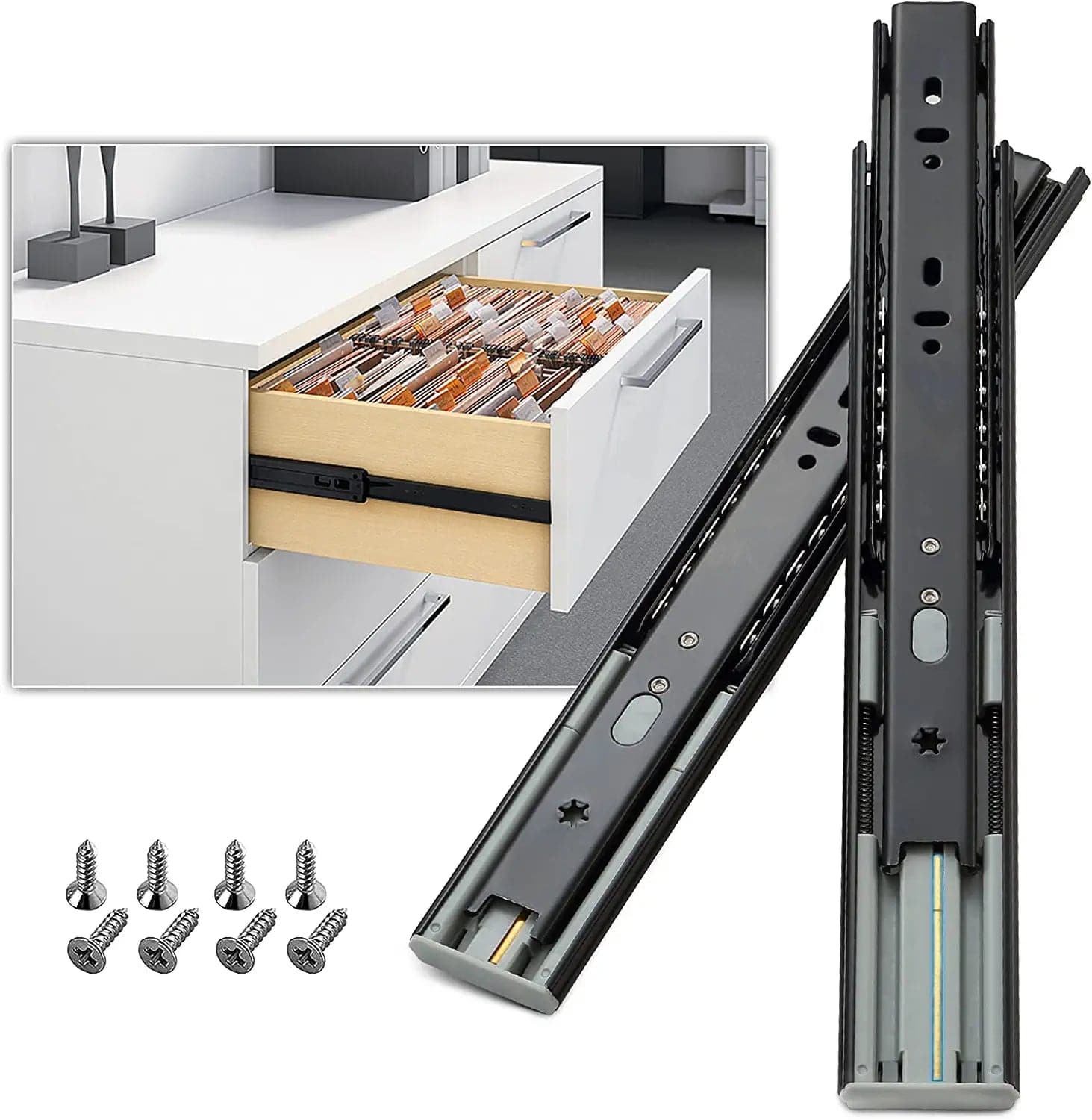

1 Pair Soft Close Drawer Slides 45 KG Load Capacity Side Mount Full Extension Ball Bearing Self Slow Closing Rail Cabinet Metal Runner Dresser Glide Track Black K1245
100-pound push to open drawer slides rail adopts a new hydraulic rebounder press operation structure, saying goodbye to the traditional handle drawer. The drawer opens with a light push. Can be used to hide drawers.
100-pound push to open drawer slides rail adopts a new hydraulic rebounder press operation structure, saying goodbye to the traditional handle drawer. The drawer opens with a light push. Can be used to hide drawers.
Discover more about the Residential Drawer Slides
- New Brass Hydraulic Shock Absorbers: Automatic Soft-Close Drawer Slides Safe and Quiet

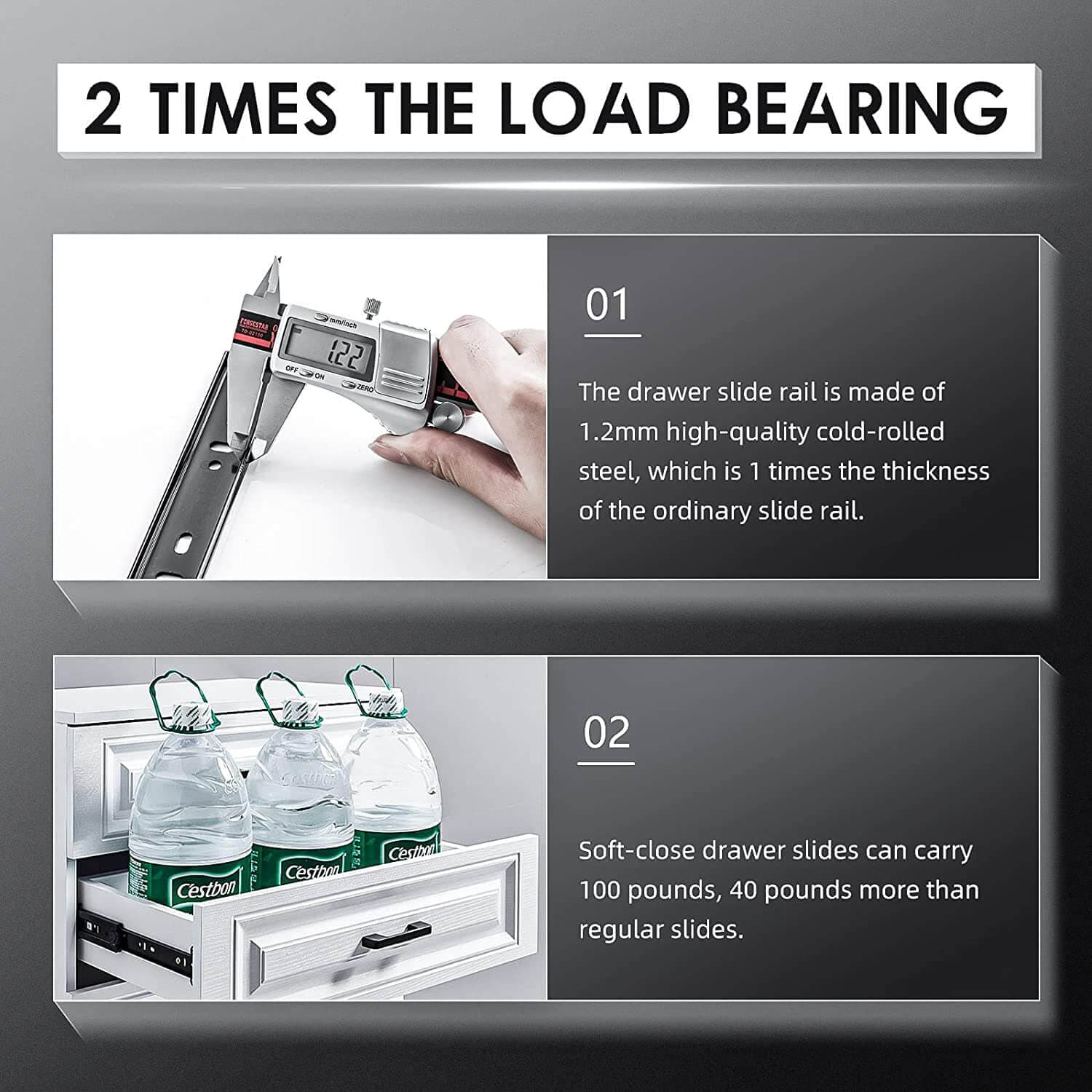

- Push open drawer slides can hold 100 lbs, 40 lbs more than regular slides.

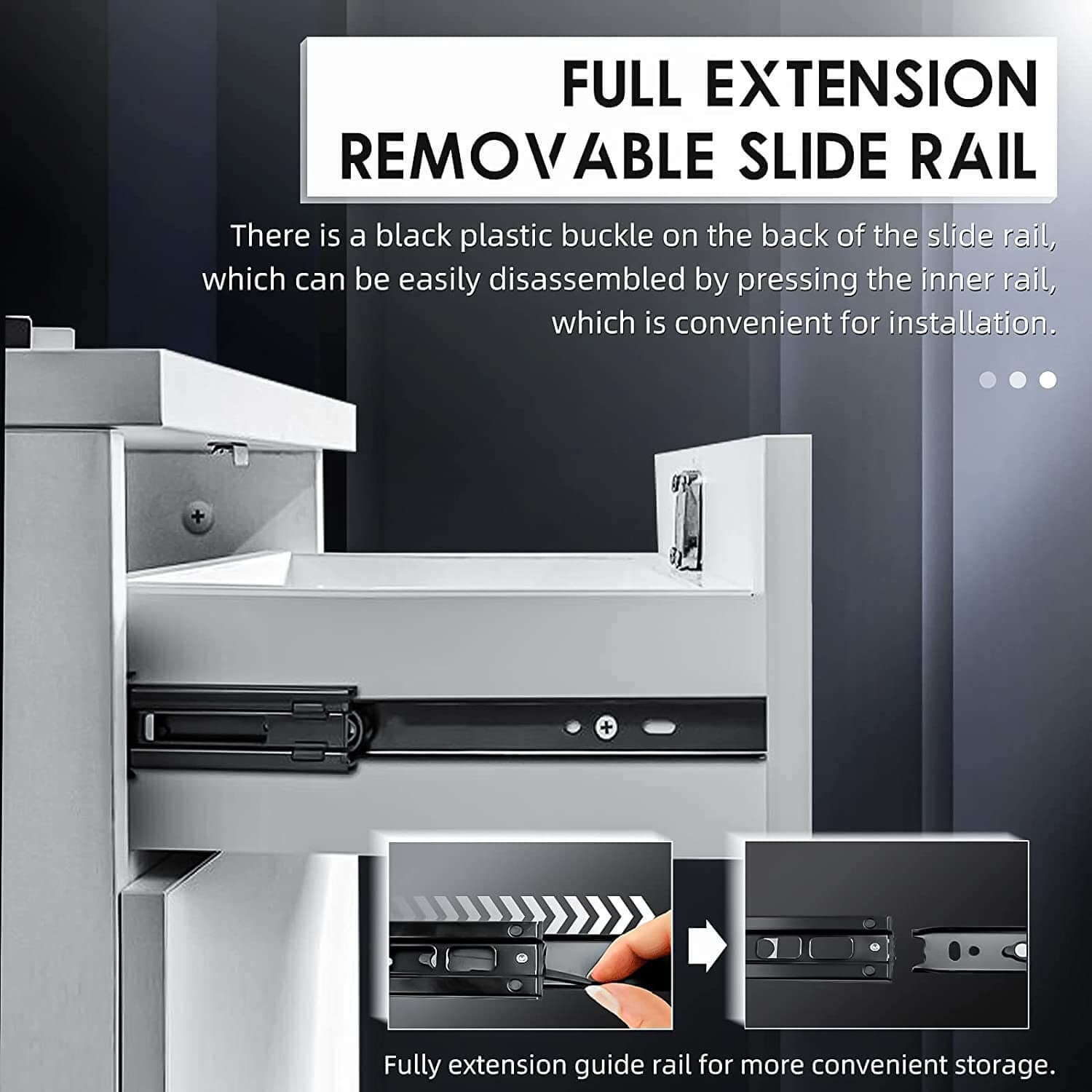

- Fully extended and detachable slide rails for easy installation and storage
- The drawer slides are made of 1.2mm high quality cold rolled steel

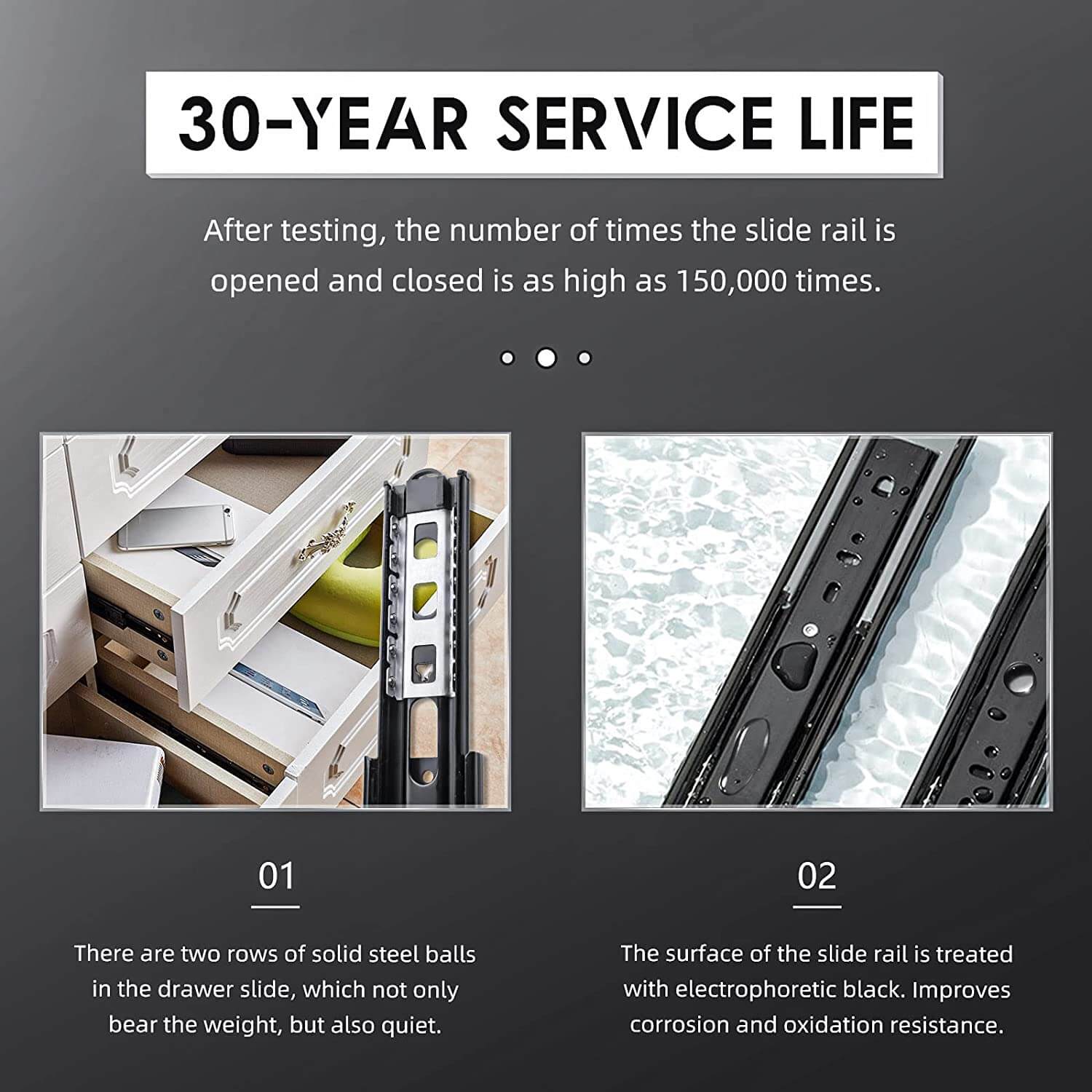

- After testing, the number of opening and closing of the slide rail is as high as 150,000 times, and the service life is 30 years
- Aolisheng slide rail has excellent anti-rust and mute function
- Two rows of solid steel balls inside for smoother pulling
Installation Guide:

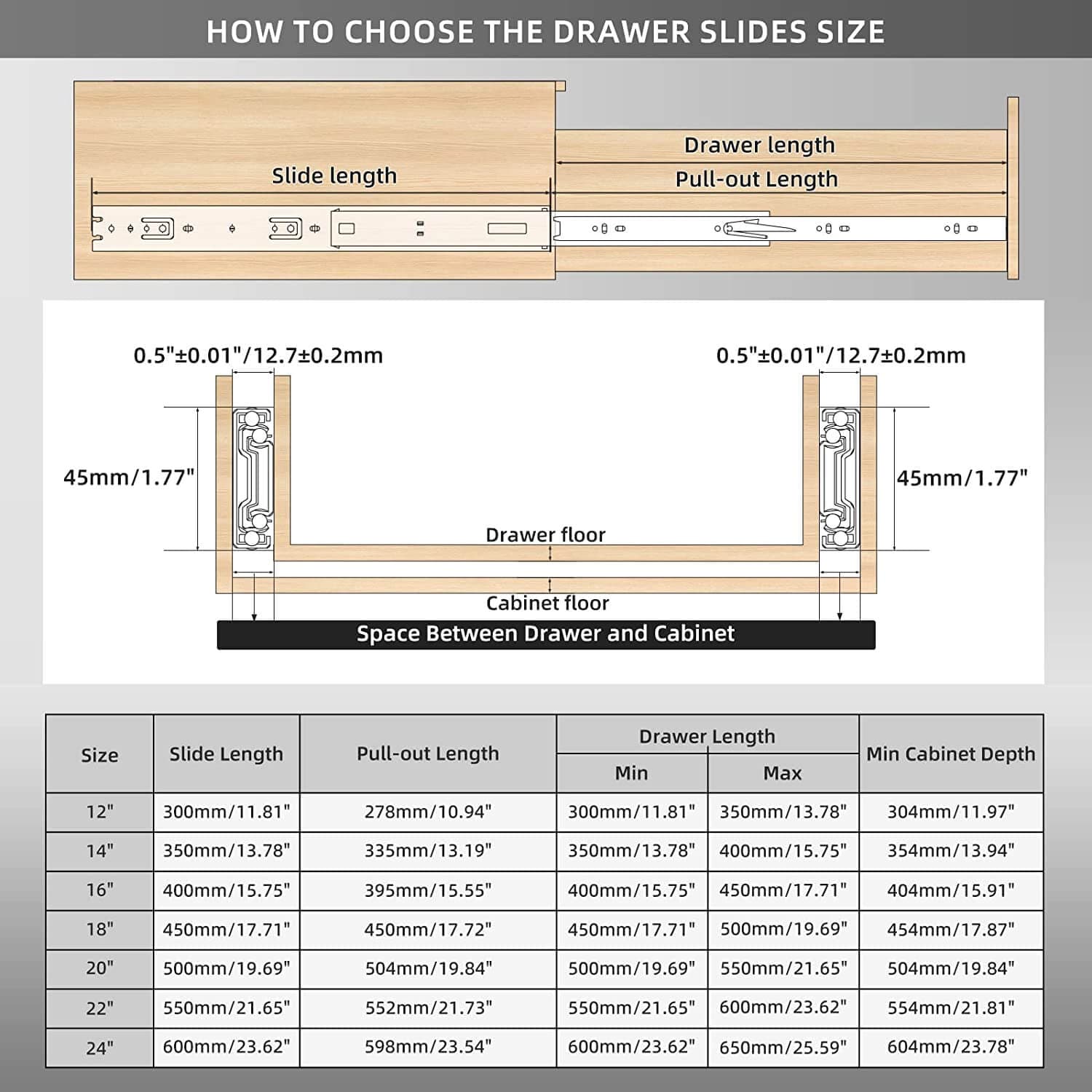

- Rail Length: 24" (600mm), for drawers with an interior depth ≥ 24". Three full extension lengths: 48" (1200mm).
- Left Mounting Clearance: 0.5" (12.5mm), Right Mounting Clearance: 0.5" (12.5mm).
- The product package contains a total of 8 mounting screws at both ends.
- When installing, please push the inner ball to the top of the slide rail first, then connect with the slide rail, and finally push it lightly to complete the installation.
- Be sure to keep the slide rails on both sides parallel. Inclined or non-parallel will affect the normal use.
Product Size:
- Width: 45MM
- Thickness: 1.2MM
- Size included: 12 14 16 18 20 22 24 inch
Process:
- Function: Soft Close
- Material: Q235 cold rolled steel
- Handling: electrophoretic black
- Structure: detachable
Installation requirements:
- Installation thickness:12.6+0.2mm
- Load capacity: 45KG/100LB
- Installation method: side mount
- Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.5mm)
Application scenario:
- Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.
Packing:
- 2pcs/pair (One left and right), with a total of 8 mounting screws at both ends
Shipping
We have a local warehouse in the Australia, and the shipping time is 2-5 days to arrive. Our service delivers to most countries in the
world and is dedicated to meeting a variety of shipping needs.
Returns
We have a 15-day return policy, which means you have 15 days to apply for a return after receiving the product.

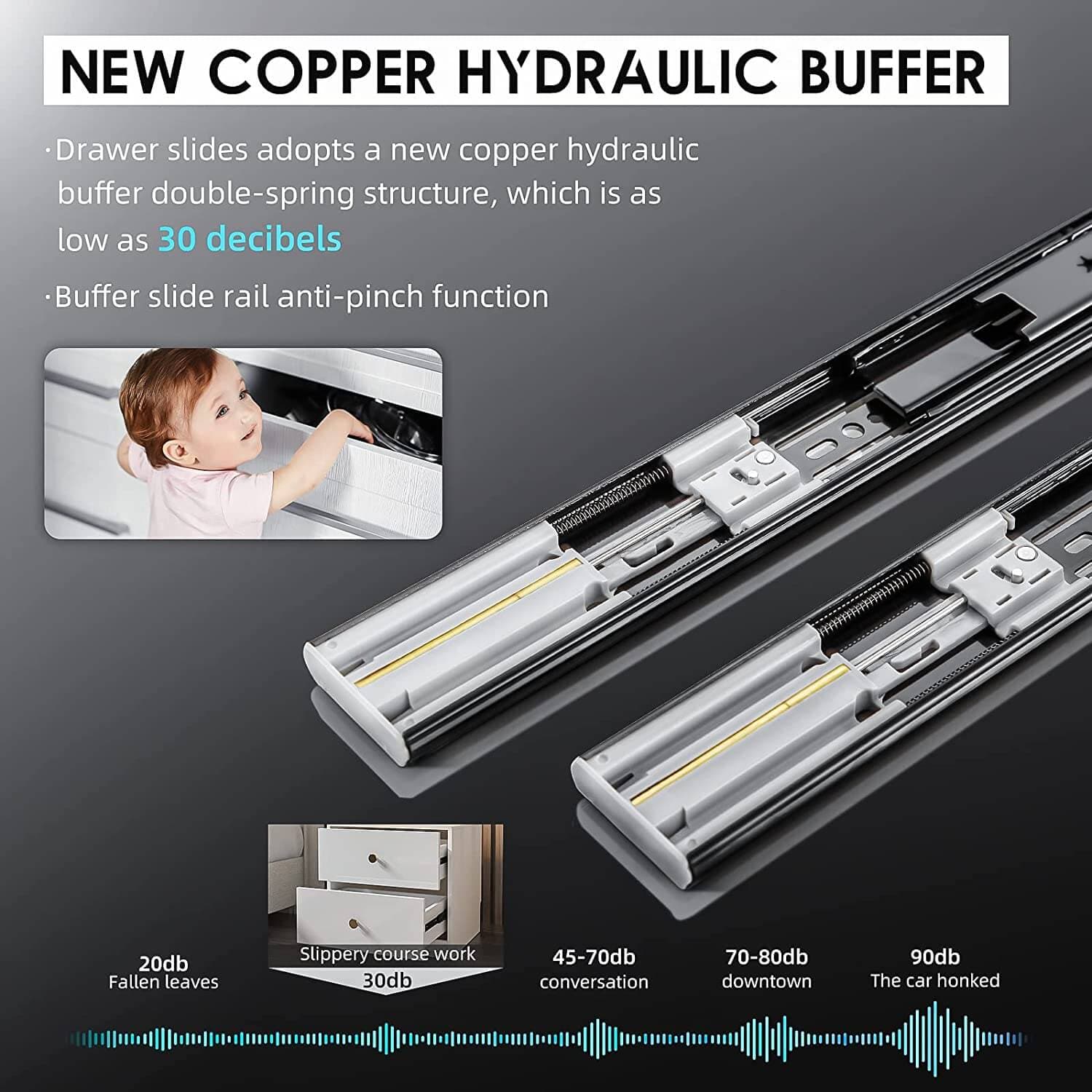

REBOUND BUFFER DEVICE
New brass hydraulic shock
absorber, automatic soft closing drawer
sliding safe, quiet
INDUSTRIAL STAINLESSSTEEL BEADS
lt has better anti-corrosion and anti-rust ability,and the pull-out effect is smoother
