Aolisheng

1 Pair 45KG Load Capacity Full Extension Side Mounted Drawer Slides Rails Ball Bearing Metal Dresser Runners File Cabinet Trash Can Slider Kitchen Glides Black A4512

Name: 1 Pair 45KG Load Capacity Full Extension Side Mounted Drawer Slides Rails Ball Bearing Metal Dresser Runners File Cabinet Trash Can Slider Kitchen Glides Black A4512
Brand: Aolisheng
SKU: A4512-10
Price: 39.52 AUD
Availability: InStock

$39.52 AUD

Product variants

The surface of the drawer slide rail adopts electrophoresis black process, which isolates the direct contact between water and air, prevents the slide rail from oxidizing and rusting, and improves corrosion resistance

Discover more about the Residential Drawer Slides

Tested by professional testing institutions. The number of opening and closing of the slide rail exceeds 100,000+, durable, and the normal service life of the slide rail exceeds 30 years.

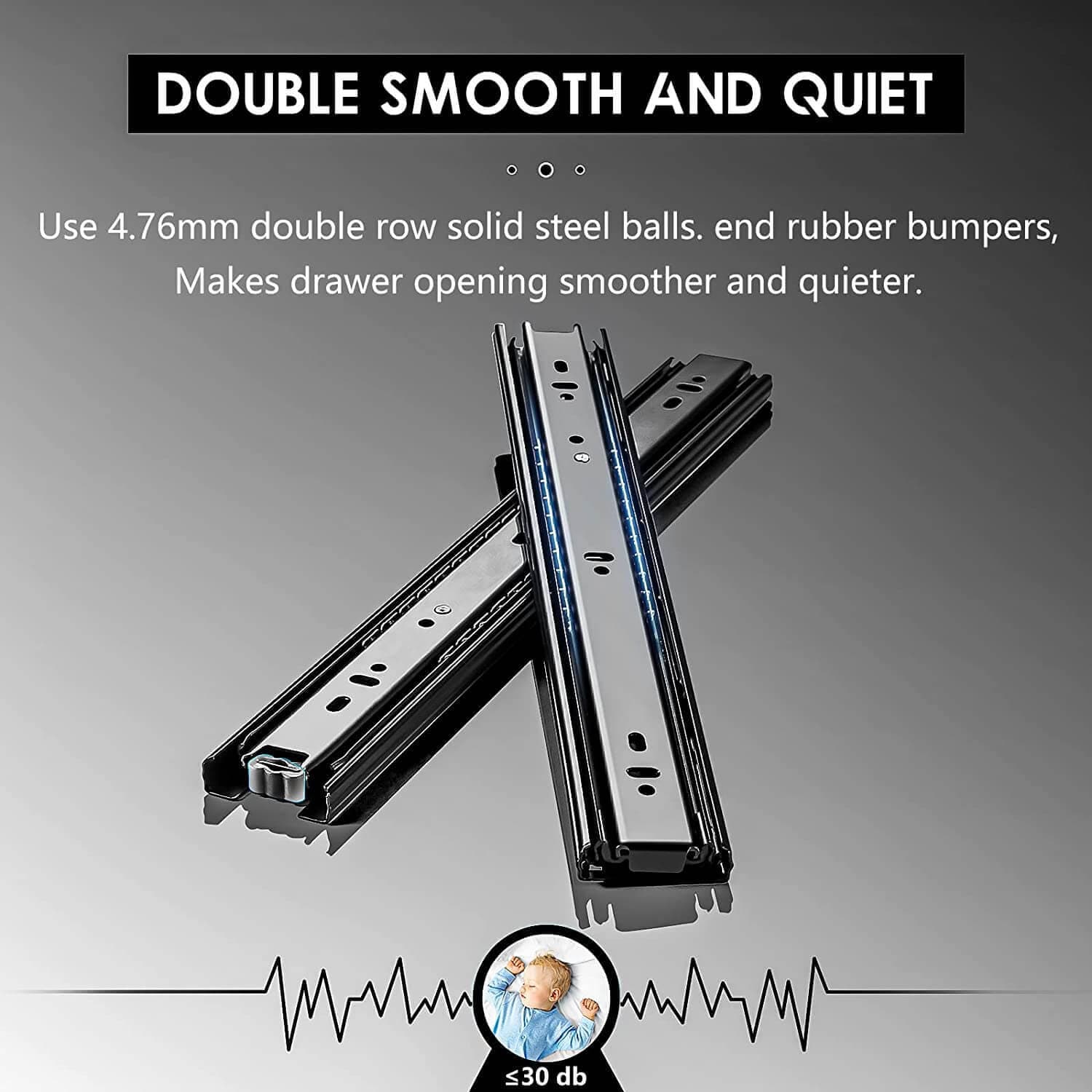

The slides provide quiet and friction-free movement when the drawer is opened. Low noise, more secure use

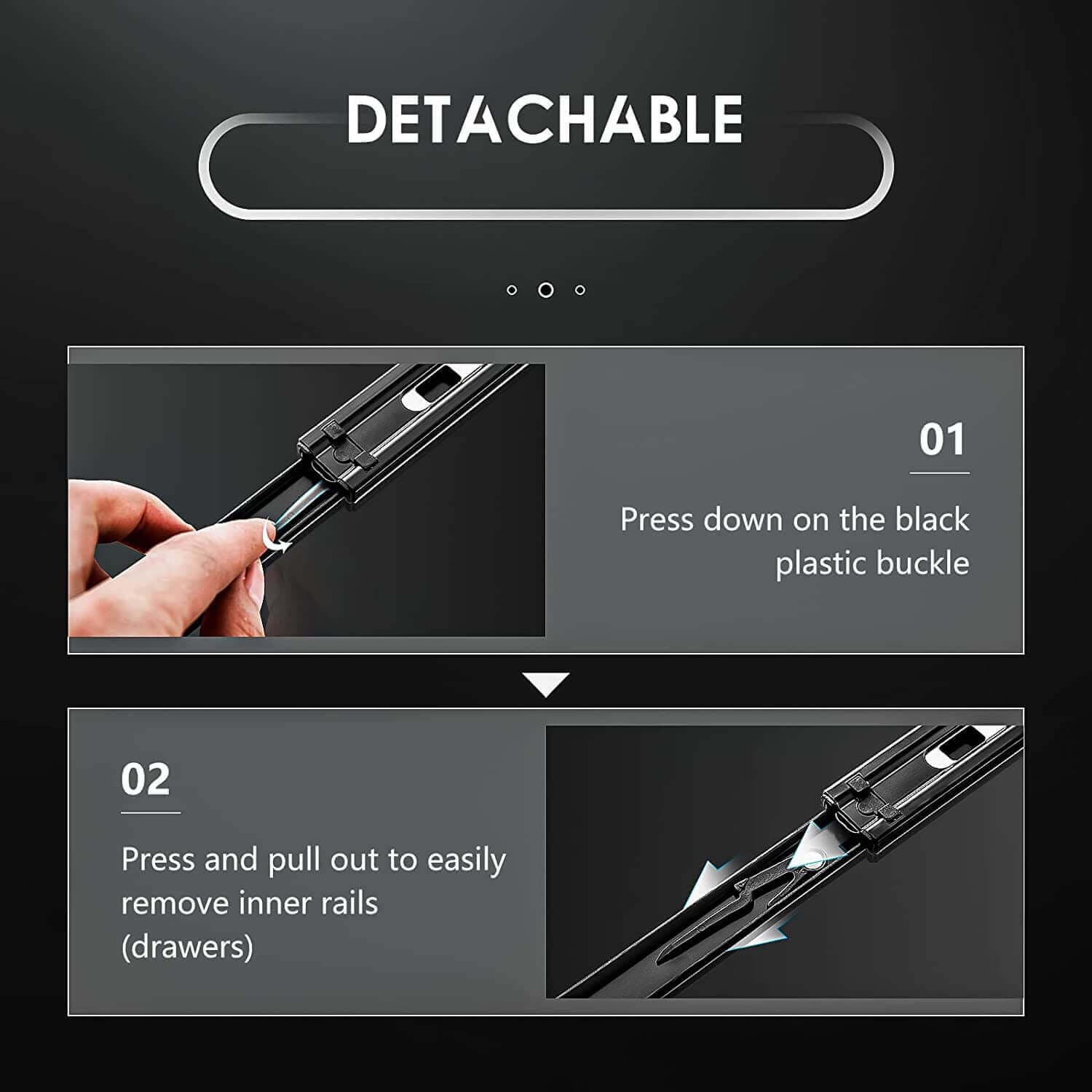

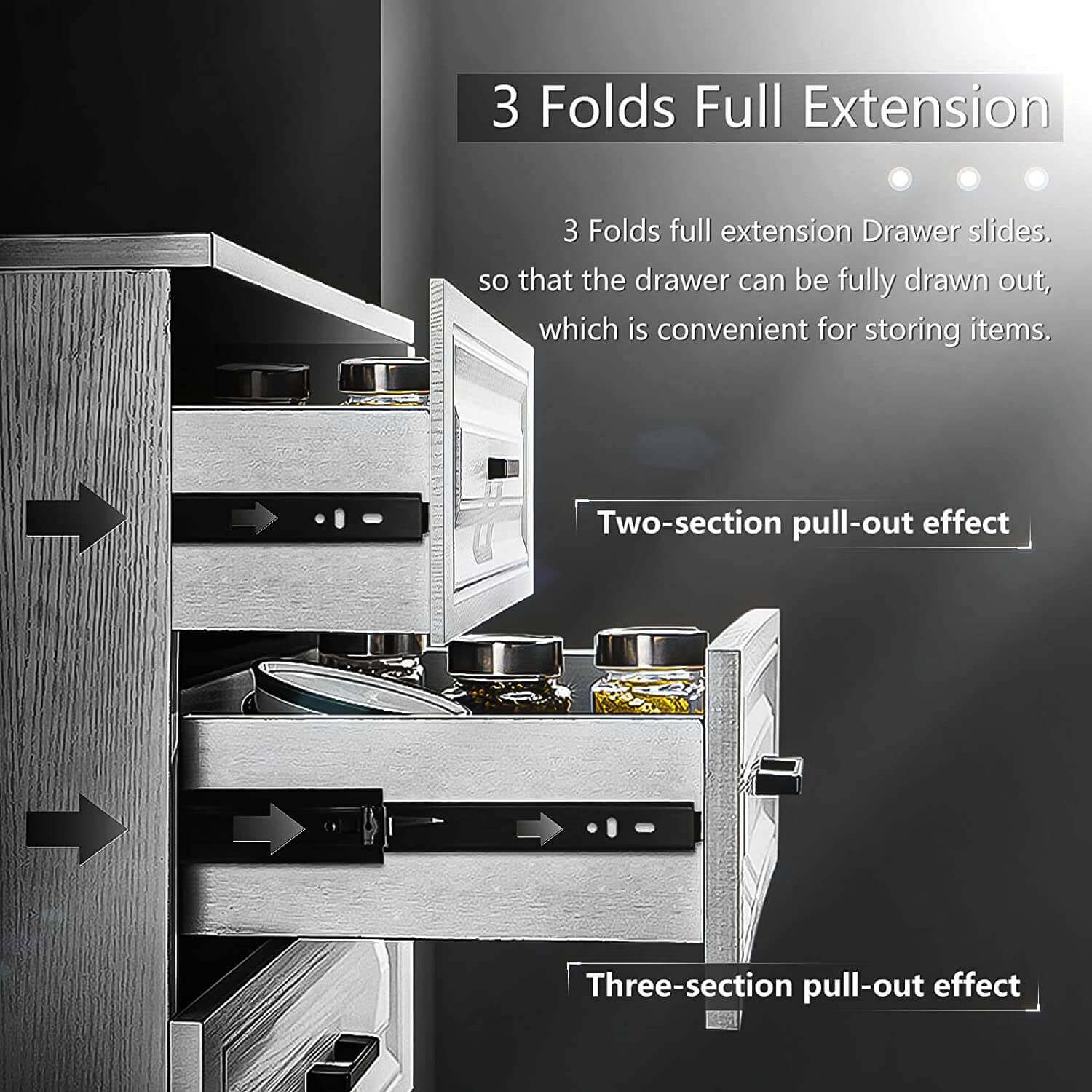

3-fold full-extension sturdy ball detachable rail design for easy installation.
Since the inside of the slide rails are pulled inward, a handle is required to open the drawer.
If your drawer doesn't have handles, choose our push-to-open drawer slides.

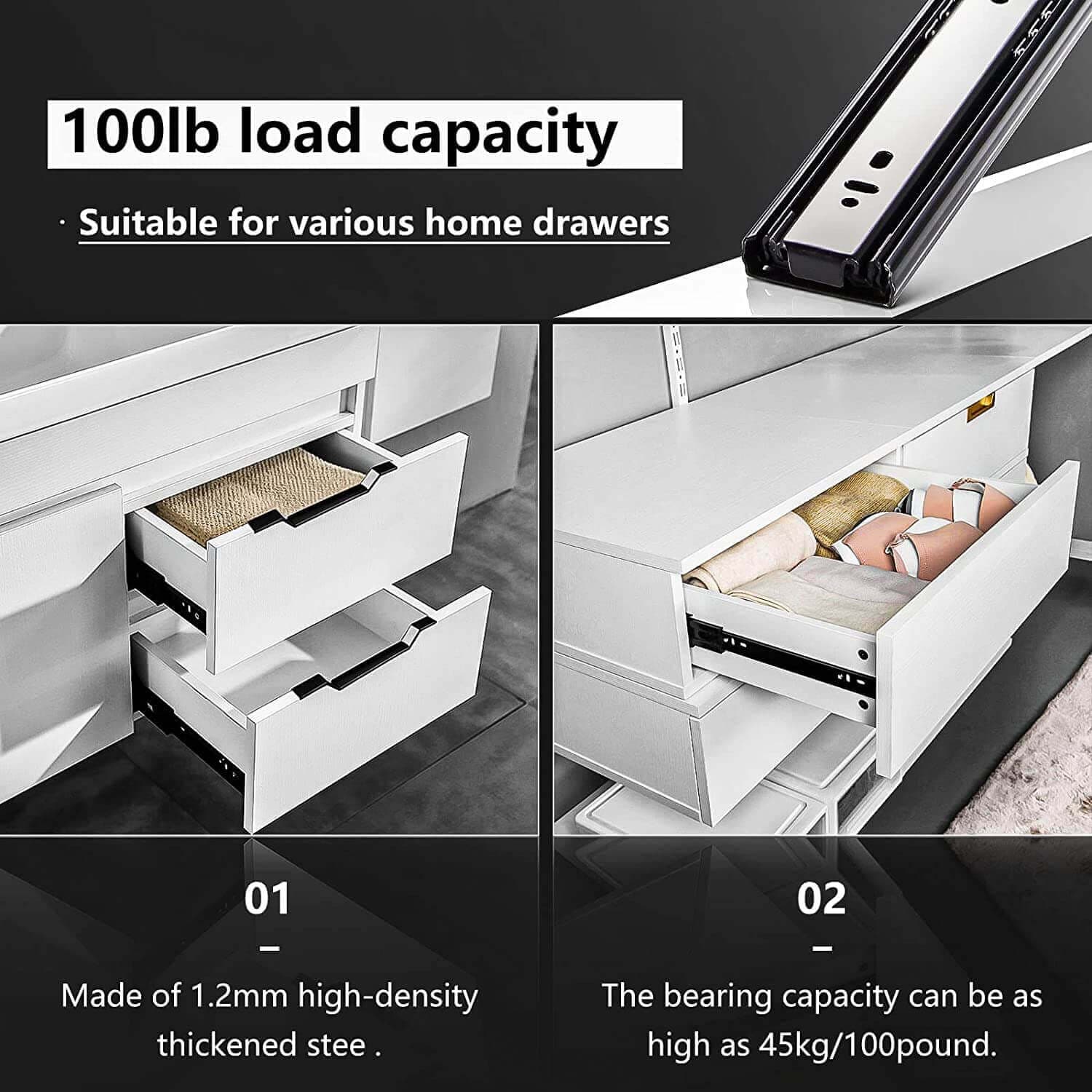

Holds up to 45kg (100 lbs) to meet the needs of a variety of household drawers
which can meet the needs of various household drawers.

Installation Guide:

Rail Length: 24" (600mm), for drawers with an interior depth ≥ 24". Three-section full extension length: 48" (1200mm).
Left Mounting Clearance: 0.5" (12.5mm), Right Mounting Clearance: 0.5" (12.5mm).
The product package includes mounting screws.
When installing, please push the inner ball to the top of the slide rail first, then
connect with the slide rail, and finally push gently to complete the installation.
Be sure to keep the rails on both sides parallel. Slanted or out of parallel will affect normal use.

Product Size:

Width: 45MM
Thickness: 1.2MM
Size included: 10 12 14 16 18 20 22 24 inch

Process:

Material: Q235 cold rolled steel
Handling: electrophoretic black
Structure: detachable

Installation requirements:

Installation thickness:12.6+0.2mm
Load capacity: 45KG/100LB
Installation method: side mount
Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.2mm)

Application scenario:

Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

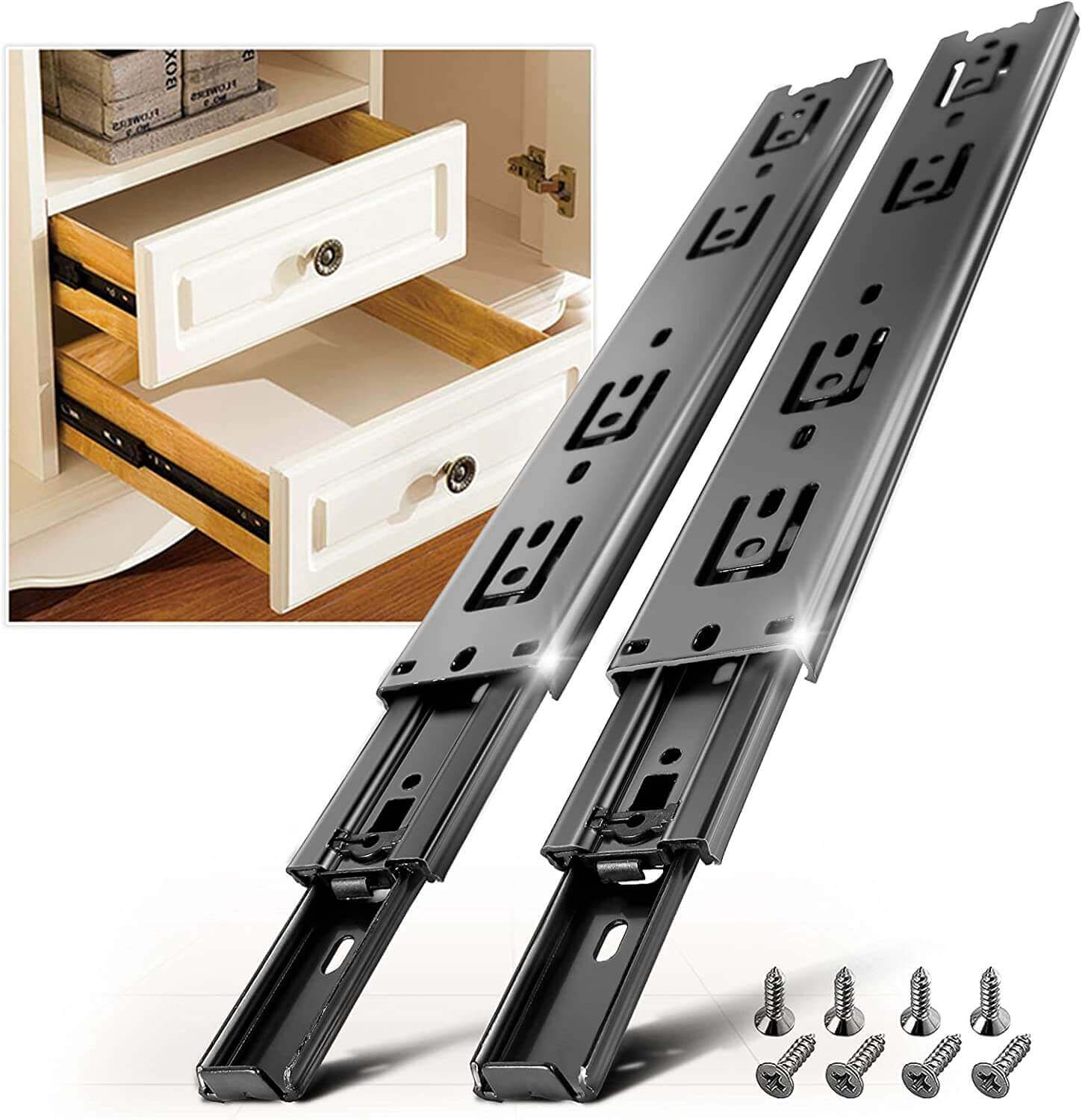

2pcs/pair (One left and right), with a total of 8 mounting screws at both ends

Shipping

We have a local warehouse in the Australia, and the shipping time is 2-5 days to arrive. Our service delivers to most countries in the
world and is dedicated to meeting a variety of shipping needs.

Returns

We have a 15-day return policy, which means you have 15 days to apply for a return after receiving the product.
