1 Pair Heavy Duty Locking Drawer Slides 265 KG Load Capacity Side Mount Full Extension Ball Bearing Industrial Locking Rail D2576
500LB heavy duty lockable drawer slides, Lightly press the lock to lock firmly without shaking, high bearing capacity, accommodate more needs, suitable for car modification, mechanical equipment, shelf toolbox, etc.
500LB heavy duty lockable drawer slides, Lightly press the lock to lock firmly without shaking, high bearing capacity, accommodate more needs, suitable for car modification, mechanical equipment, shelf toolbox, etc.
Discover more about the Heavy Duty Drawer Slides
- Max load capacity 500lb, 30-year service life
- Made of thickened Q235 high-strength cold-rolled steel
- Use carbon steel solid steel balls to pull more smoothly
- Lockable drawer slides are more convenient and comfortable to use
- Full pull-out slide rail, The surface is treated with galvanized blue sealing process for double layer rust prevention
- The bottom with a limited rubber pad, the material is ABS plastic, good wear resistance, good anti-collision
Notes On Slide Rails
- In order to ensure the safety of users, heavy-duty slide rails cannot be disassembled.
- The locking mechanism can only take effect when the drawer is fully closed or fully opened.
- The product does not include screws because of different usage scenarios. You can purchase M6 screws by yourself.

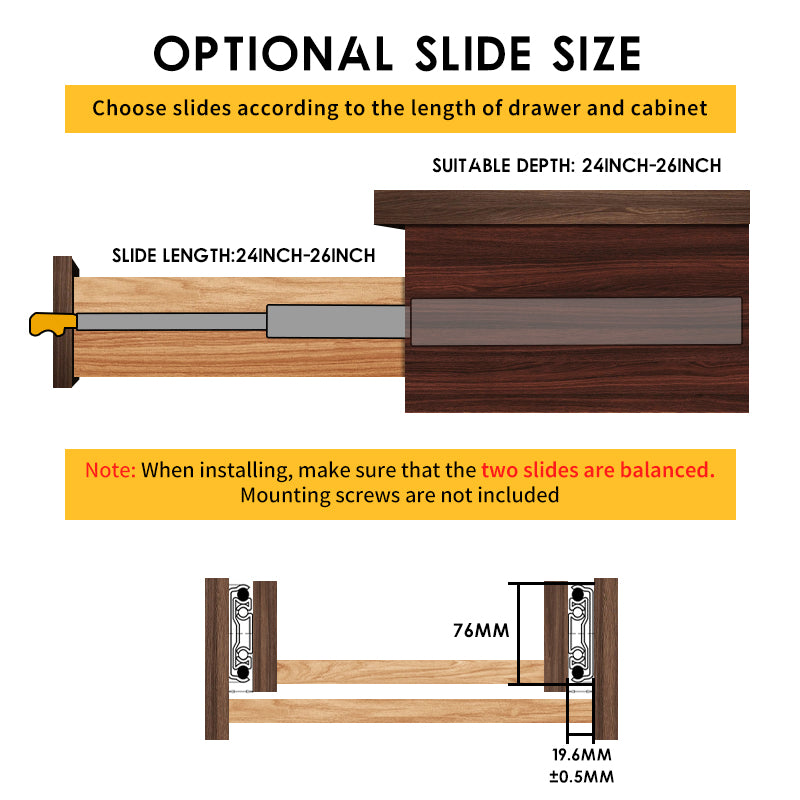

Product Dimensions:
- Width: 76MM
- Thickness: 2.5MM
- Include Size: 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 44 48 52 56 60 inch
Craft：
- Function: with lock
- Bearing：Carbon steel solid steel ball
- Material: Q235 cold rolled steel
- Deal With: surface electroplating blue zinc
Installation Requirements：
- Installation thickness: 19.6+0.5mm
- Load capacity: 220KG/500LB
- Installation method: side mount
- Plate Thickness: Outer Slider (2.5mm) / Middle Slider (2.5mm) / Inner Slider (2.5mm)
Application Scenario：
Shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
Shipping
We have a local warehouse in the Australia, and the shipping time is 2-5 days to arrive. Our service delivers to most countries in the
world and is dedicated to meeting a variety of shipping needs.
Returns
We have a 15-day return policy, which means you have 15 days to apply for a return after receiving the product.
Product Description
Side Mount Full Extension Heavy Duty Lockable Drawer Slides
Customer Reviews
Came quickly. Free shipping! These were heavy! Work great. Relatively easy to install, although we had to cut the drawers down & rebuild to make room for these big guys... Work fantastic now that they are installed. MUCH improved from the previous slides. Thank you!!
This product is good but comes with no instructions for installation AND you will need to cut bottom of drawer face to use locks.
Used to build a sliding hole cover. Holds beyond 250lbs.
These are very heavy duty slides that lock in place. I used them to mount an induction cook top in my camper van's kitchen. They were slightly tricky to mount as they don't separate, but that was a minor problem. They have a very solid feel and the locking mechanism is very robust. These slides weren't cheap, but I feel that they were worth the money.
Being a retired cabinetmaker I appreciate the choices and quality of the drawer slides. However be aware they dont come with instructions or installation screws. They work well and are made to commercial standards.
STRONG BEARING CAPACITY
Max load capacity 500lb, 30-year service life
Locking protective sleeve
In the product packaging, we will have a lock protective cover to protect the lock to avoid damage to the drawer slides.
VARIOUS FUNCTIONS
You can only lock when closed or fully expanded,It unfolds twice as much as whenhits closed.The three-section full-scale design better pulls out the drawer to place itemsin it.
INDUSTRIAL GRACESTAINLESS STEEL
Full pull-out slide rail, The surface is treated with galvanized blue sealing process for double layer rust prevention
