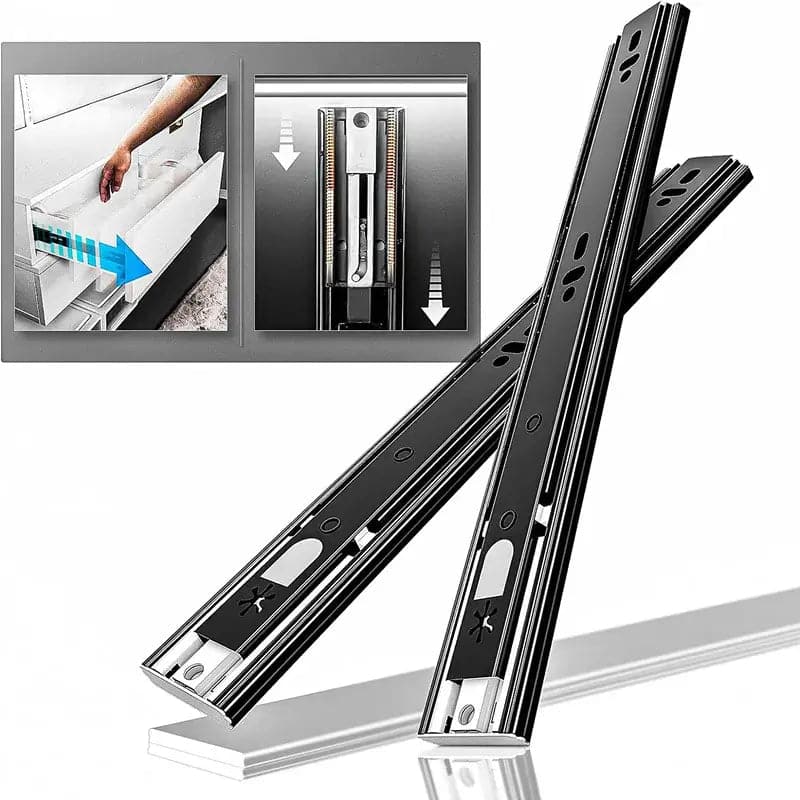

1 Pair Push to Open Full Extension Drawer Slides 45 KG Load Capacity Side Mount Handleless Touch Open Ball Bearing Cabinet Rails Metal Runner Dresser Glide Black F1245

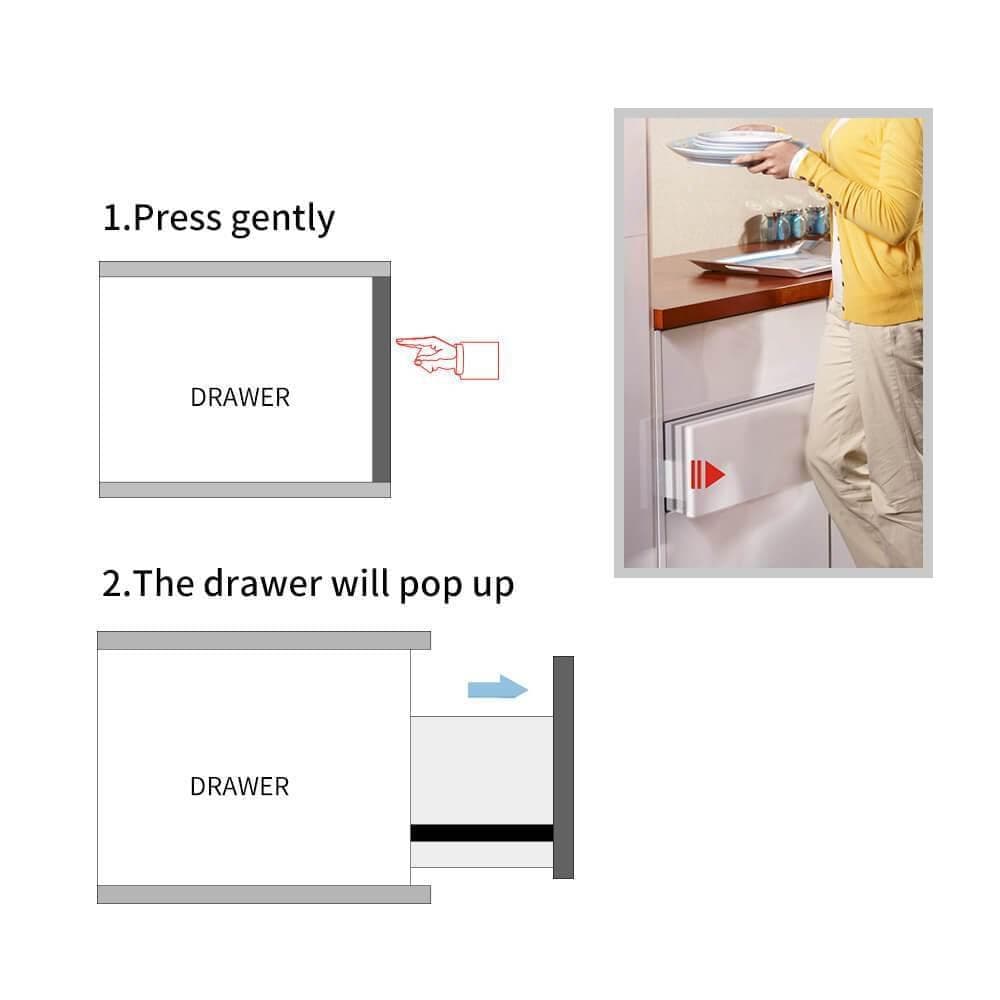

100-pound push to open drawer slides rail adopts a new hydraulic rebounder press operation structure, saying goodbye to the traditional handle drawer. The drawer opens with a light push. Can be used to hide drawers.
100-pound push to open drawer slides rail adopts a new hydraulic rebounder press operation structure, saying goodbye to the traditional handle drawer. The drawer opens with a light push. Can be used to hide drawers.
Discover more about the Residential Drawer Slides
- New hydraulic rebounder to open the drawer with a light push
- Push open drawer slides can hold 100 lbs, 40 lbs more than regular slides.

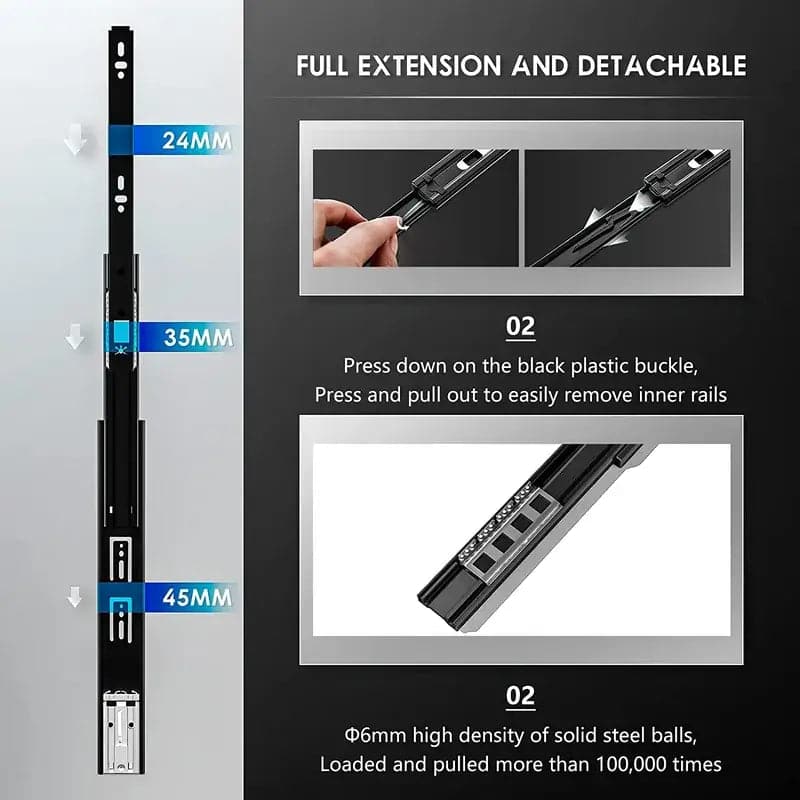

- Fully extended and detachable slide rails for easy installation and storage
- The drawer slides are made of 1.2mm high quality cold rolled steel
- After testing, the number of opening and closing of the slide rail is as high as 150,000 times, and the service life is 30 years
- Aolisheng slide rail has excellent anti-rust and mute function
- Two rows of solid steel balls inside for smoother pulling
Installation Guide:
- Rail Length: 24" (600mm), for drawers with an interior depth ≥ 24". Three full extension lengths: 48" (1200mm).
- Left Mounting Clearance: 0.5" (12.5mm), Right Mounting Clearance: 0.5" (12.5mm).
- The product package contains a total of 8 mounting screws at both ends.
- When installing, please push the inner ball to the top of the slide rail first, then connect with the slide rail, and finally push it lightly to complete the installation.
- Be sure to keep the slide rails on both sides parallel. Inclined or non-parallel will affect the normal use.
Product Size:
- Width: 45MM
- Thickness: 1.2MM
- Size included: 12 14 16 18 20 22 24 inch
Process:
- Function: push open
- Material: Q235 cold rolled steel
- Handling: electrophoretic black
- Structure: detachable
Installation requirements:
- Installation thickness:12.6+0.2mm

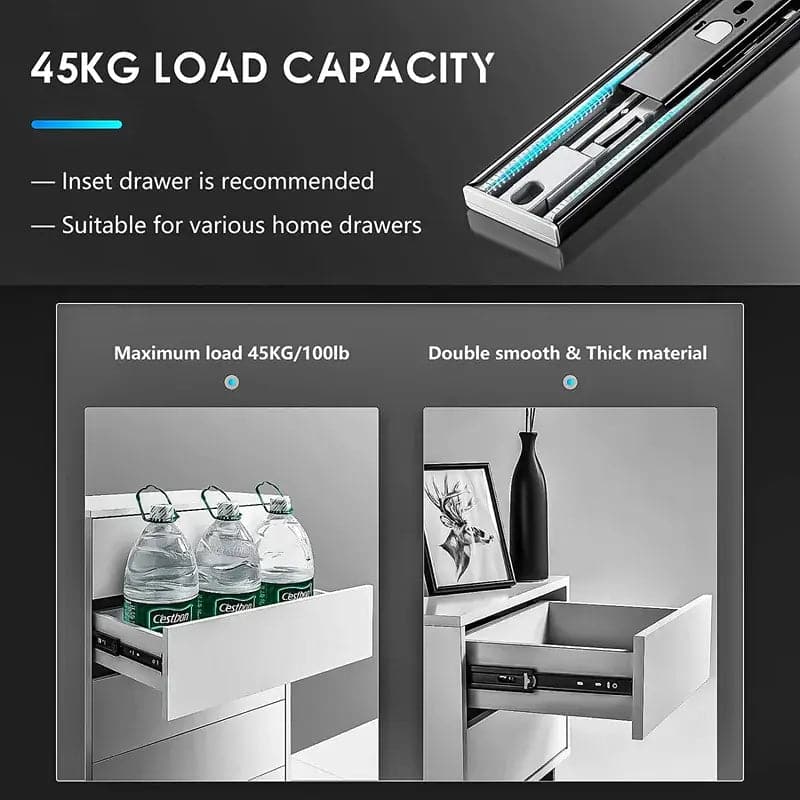

- Load capacity: 45KG/100LB
- Installation method: side mount
- Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.5mm)
Application scenario:
- Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.
Packing:
- 2pcs/pair (One left and right), with a total of 8 mounting screws at both ends
Shipping
We have a local warehouse in the Australia, and the shipping time is 2-5 days to arrive. Our service delivers to most countries in the
world and is dedicated to meeting a variety of shipping needs.
Returns
We have a 15-day return policy, which means you have 15 days to apply for a return after receiving the product.
Customer Reviews
I spent hours comparing push to open drawer slides, scouring over every review. Finally settled on these because of the okay reviews and the quickness of delivery. Overall, they seem like they could be great. But one of the slides arrived broken, so the push to open feature doesn't work. Will be returning, broken-hearted
Bought this as the rails on my top dresser drawer broke. Easy to install and it has the secure push to open feature.
These were just what I wanted
Good product
We are using these to make kick plate drawers in the kitchen. It took some initial trial and error, but were pleased with the result.

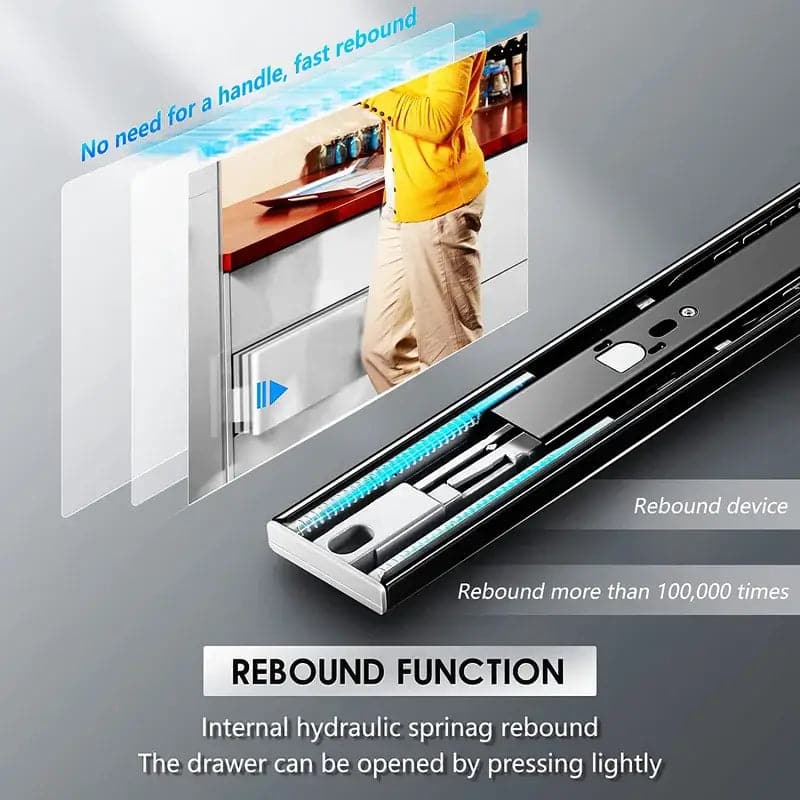

PRESS REBOUND DEVICE
New hydraulic rebounder to open the
drawer with a light push
BEARING 100LB
Push open drawer slides can hold 100 lbs, 40 lbs more than regular slides.
